IRA. Scanning Autocorrelator with Extended Scan Range
| IRA-VISIR | IRA-MIR | |
| Full possible input wavelength range* | 450-2200 nm | 2.2-11 um |
| Subranges* | VIS: 450-700 nm NIR1: 700-1300 nm NIR2: 1300-2200 nm |
MIR1: 2.2-5 um MIR2: 5-11 um |
| Input pulse duration range | 50 fs - 250 ps | |
| Sensitivity** | 1 W^2 at 50 fs - 1 ps (w. thin NL crystals) 5 W^2 at 1-250 ps (w. thick NL crystals) |
20 W^2 at 50 fs - 1 ps (w. thin NL crystals) 50 W^2 at 1-250 ps (w. thick NL crystals) |
| Maximum input average power | 1 W | |
| Input repetition rate | 10 Hz - 100 MHz | |
| Input polarization | linear, horizontal | |
| Delay line temporal resolution | 8.3 fs | |
| Full scan range | 850 ps | |
| Required equipment | PC with USB; Windows acquisition and analysis software included | |
| Power supply | 220/110 V; 50/60 Hz ±10% | |
| Dimensions | optical unit: 450x250x210 mm control unit: 250x180x90 mm |
|
| * - each subrange is covered by an exchangeable optics set (NL crystals, beamsplitters, filters, photodetectors). A set for one of the subranges of the customer's choice is supplied with the unit, additional sets are supplied upon request; the final set of optics and detectors depends on the specifications of the sources to be measured and is discussed with our sales manager upon offering; ** - Pav*Ppeak (average power value in Watts multiplied by pulse peak power value in Watts); typical values; depends on input pulse duration and wavelength. |
||

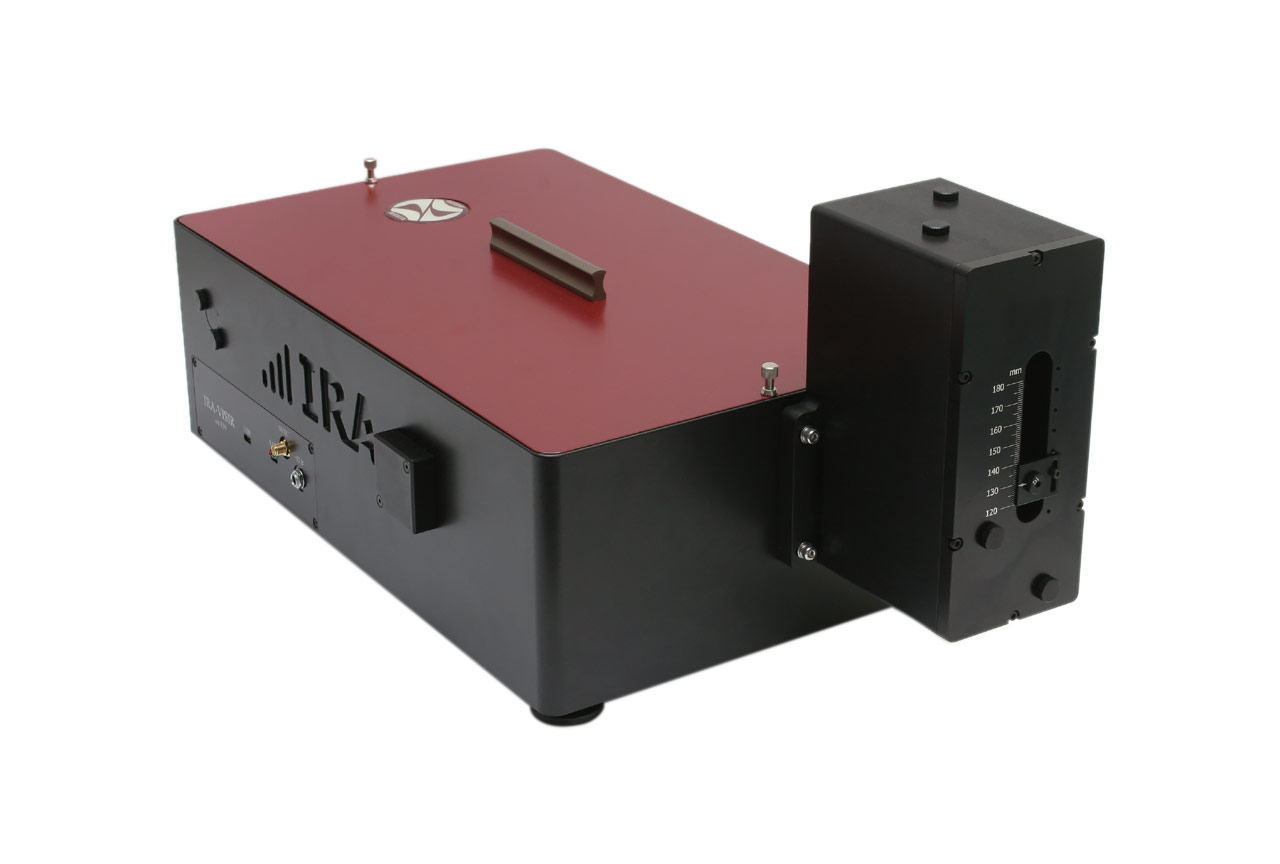

The IRA scanning autocorrelator is specifically developed for measurement of pulse duration and near contrast ratio of ultrafast radiation generated by ultrafast amplifiers and oscillators. There is also a special model of the IRA system that is suitable for mid-IR laser sources.
The IRA includes opto-mechanical assembly and electronics with USB interface. The system is easy to operate and includes a full set of user friendly Windows software tools for data collection and analysis. Approximation with Gauss and Sech^2 shapes is also available. The unit implements a robust scanning mechanism.
The acquisition and analysis software is fully compatible with Windows, USB drivers are included
